Building Survey Inspection Kit - BSIK

Moisture survey kit for building materials

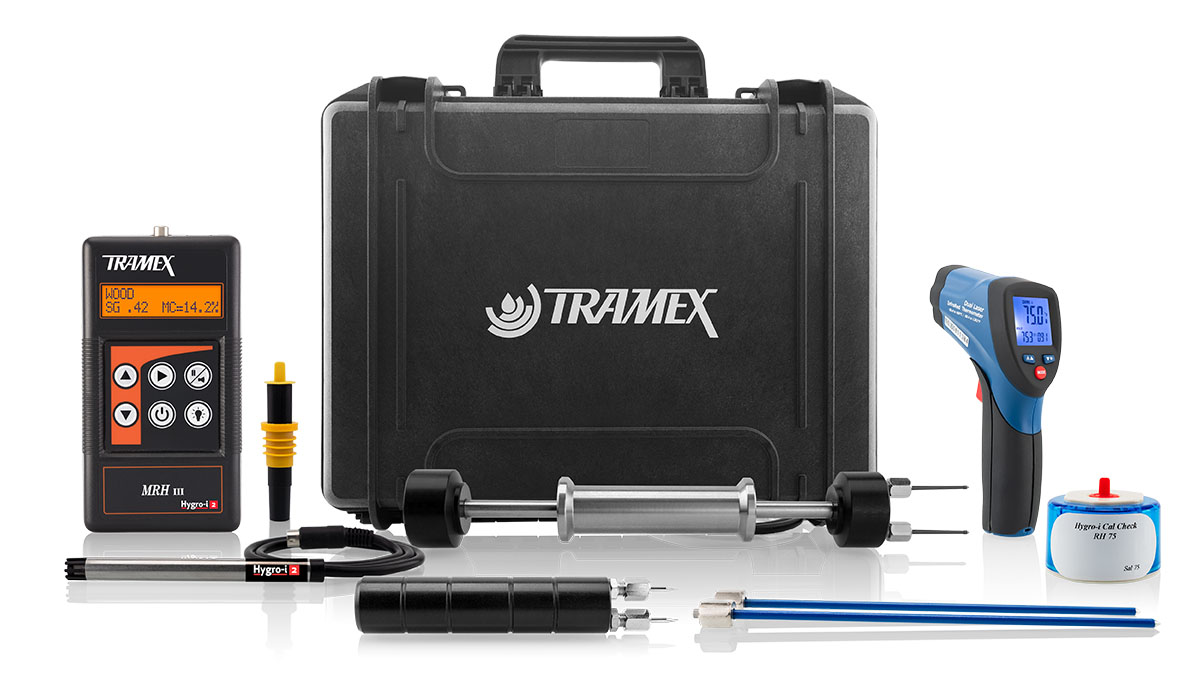

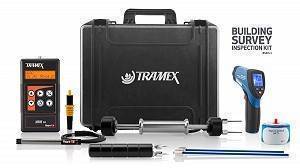

The Tramex BSIK is the complete kit for non-destructive testing of moisture content and humidity conditions in drywall, wood, plaster, brick, ceramic tiles, resilient flooring, laminates and roofing and numerous building materials and air spaces. Tramex moisture meters are designed to locate elevated moisture & humidity conditions, which may be conducive to mold, microbial growth and wood destroying organisms. These damp conditions can often be hidden within or behind a material such as drywall and not obvious from visual inspection without the help of a non-destructive moisture meter. Once the moisture source is identified and stopped, remedial action can be taken leading to a healthier building environment. The Tramex digital MRH III and reusable Ambient Relative Humidity Hygro-i2 Short Probe allow for testing relative humidity, temperature and dew point in the environment. The heavy-duty pin-probes measure moisture content in wood, and the insulated 200mm (7.8") pins allow for deep wall cavity probing. Concrete slab in situ relative humidity testing can also be performed with the reusable relative humidity probe and enclosed hole liners. The Tramex Building Survey Inspection Kit comes in a protective heavy-duty carrying case with die-cut foam lining.



Product Order Code: BSIK5.1
Non Destructive
Ambient Relative Humidity, Temperature, Dew Point, gr/lb
Wood Moisture Content 7-40%
Comparative 0-100























































































Features of MRH III

  • Deep signal, non-destructive penetration up to 30mm in wood and drywall in non-destructive mode.
  • Detects moisture through paint, wall coverings, drywall, ceramic tiles, floor coverings, wood, roof coverings and most building materials.
  • Hold function “freezes” meter reading when inspecting areas where the meter face is not visible.
  • Audio signal sounds when meter indicates high readings.
  • Large clear backlit digital display giving meaningful readings.
  • Accuracy in very low moisture content readings and up to 55% moisture content readings in wood in non-invasive mode.
  • Attachable pin-type wood probe for accessing hard to reach areas and for probing into wall cavities and wood. (optional)
  • Attachable Relative Humidity probe for testing of relative humidity, temperature, dew point and grains per pound readings all shown on one clear display, as well as in situ or hood testing of concrete per BS 8201, 8203, 5325 (optional)

MRH3 - Measuring range:

Depth of penetration: up to 1¼"(30mm)(In wood, drywall)
Reference scale for building materials: 0 to 100
Relative Humidity (with optional Hygro-i2 ® probe): 0 to 99%
Wood Non-invasive Mode: 5 to 55% MC (at SG of 0.3)
Wood Invasive Mode (with optional wood pin probes): 7 to 40%MC



Hygro-i2 Short Probe - Relative Humidity Sensor Specifications:

Range: 0 to 100%RH
Accuracy: 0% to 99%RH ±2.0%RH (@ 77ºF (25ºC))
Resolution: 0.1% over the complete range
Drift: <0.25%RH per year


Hygro-i2 Short Probe - Temperature Sensor Specifications:

Range: -40ºF to 257ºF (-40ºC to 125ºC)
Accuracy: ±0.1ºF Range 68ºF to 140ºF
  (±0.1°C Range 20°C to 60°C)
Sensor Protection: PTFE Film protects sensor opening from water & dust
Drift: <0.04ºF (0.03ºC) per year
NIST traceable.

(National Institute of Standards and Technology)



Infrared Thermometer  IRT2

Temperature range: -58ºF ~ 1202ºF (-50 to 650 ºC)
Distance to Spot ratio: D:S = 12:1
Display resolution: 0.1 ºF(0.1ºC)   <1000 1ºC   >1000
Accuracy for targets:

Assumes ambient operating temperature of  73 to 77ºF (23 to 25 ºC) -58ºF ~ 68ºF (-50 ~ 20ºC)

±4.5ºF (2.5ºC) 68ºF ~572ºF (20ºC ~300ºC)  ±1.0% ± 1.8ºF (1.0ºC) 572ºF ~ 1202ºF (300ºC ~650ºC) ±1.5%

Repeatability: -58~68ºF (-50~20ºC)  :  ± 2.3ºF (1.3ºC) 68~1202ºF (20~650ºC) : ±0.5% or ±0.9ºF (0.5ºC)
Response time: 150ms
Spectral response: 8~14um
Emissivity: Digitally adjustable from 0.10 to 1.0
Over range indication: LCD will show “----”
Polarity: Automatic (no indication for positive polarity); Minus (-) sign for negative polarity
Diode laser output: <1mW,Wavelength 630~670nm, Class 2 laser product
Operating temp.: 32 to 122ºF ( 0 to 50ºC)
Storage temp.: 14 to 140ºF (–10 to 60ºC)
Relative humidity: 10%~90%RH operating, <80%RH storage
Power supply: 9V battery, NEDA 1604A or IEC 6LR61, or equivalent
Safety: “ CE ” Comply with EMC



Specifications of Kit:

Size: 16.9" x 13.6" x 5.1" (430mm x 345mm x 130mm)
Weight: 8.2lbs (3.72kg)
Power: 2 x 9 volt PP3 Batteries (included)
