The Tramex Remote Environmental Monitoring System Accessory Pack adds more Cloud Sensors to your TREMS project.

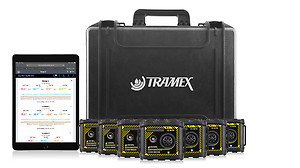

The AP-TREMS-10 comprises 10 CS-RHTA Tramex Cloud Sensors. Multiple Sensors can be used with one Tramex Cloud Station. Registration and on-site set-up is simple using a QR code check-in procedure.

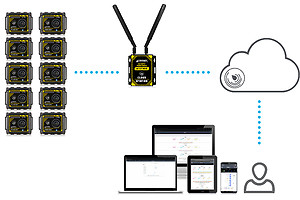

The on-site Sensors, with battery life of up to 15 years, transmit relative humidity, temperature (ºC and ºF), dew point and grains per pound / grams per kilo readings wirelessly via the Tramex Cloud Station enabling remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform. Tramex Cloud is a secure platform to store and report your moisture, temperature and relative humidity measurements, get notified of adverse conditions and quickly monitor status from any browser.
There are no subscription fees and there is free data with the Tramex Remote Environmental Monitoring System.
Temperature Sensor Specifications:
| Exeptional Accuracy: | ±0.1ºF Range 68ºF to 140ºF± (0.1 °C Range 20°C to 60°C) |
| Range: | -40ºF to 257ºF (-40ºC to 125ºC) |
| Sensor Protection: | PTFE Film protects sensor opening from water & dust |
| Drift: | <0.04ºF (0.03ºC) per year |
Relative Humidity Sensor Specifications:
| Exceptional Accuracy: | ±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC)) |
| Range: | 0 to 100%RH |
| Resolution | 0.1% over the complete range |
| Drift | <0.25%RH per year |
Sensor Specifications:
| Transmission Range: | Up to 2 miles line-of-sight |
| Communication Frequency: | Multiple readings per hour. |
| Identification: | Items individually coded for ease of install and logging identification. |
| Size: | 3.94” x 3.54” x 1.38” (100mm x 90mm x35mm) |
| Weight: | 3.53oz (100g) |
| Construction: | ABS enclosure |
| Power: | Built in CR123A battery with up to 15 year lifespan |
| Included: | Wall Mounting |
Tramex Cloud Specifications
| Frequency: | Region Specific frequency available |
| Security: | WPA2-PSK encryption, no unwarranted telemetry/tracking. |
| Size: | 5.12” x 4.53” x 1.19” (130mm x 115mm x 30mm) |
| Weight: | 9.5oz (270g) |
| Power: | Universal AC Power Adapter |
| Construction: | Wall-mountable Industrial Aluminium |
Data is stored free of charge for a period of 2 years, after which, following our data retention policy, you will need to download it.
Kit Specifications
| Size: | 21.1” x 16.1” x 6.3” (510mm x 410mm x 160mm) |
| Weight: | 9.9lbs (4.5kg) |
| Power: | 10 x CR123A 3-volt batteries (included) |
The Tramex Remote Environmental Monitoring System Accessory Pack adds 5 more Cloud Sensors to your TREMS project.
The TREMS-5 comprises 5 CS-RHTA Tramex Cloud Sensors and a Tramex Cloud Station router. Multiple Sensors can be used with one Station and additional sensor Accessory Packs are also available.
The TREMS-10 comprises 10 CS-RHTA Tramex Cloud Sensors and a Tramex Cloud Station router. Multiple Sensors can be used with one Station and additional sensor Accessory Packs are also available.
