The Tramex Remote Environmental Monitoring System WME/MC allows for Moisture Content (%MC) monitoring in wood and Wood Moisture Equivalent (WME) monitoring in a variety of building materials such as wood-based products, drywall or plasterboard. Additionally, the system enables ambient temperature and relative humidity monitoring to ensure optimal environmental conditions.
Designed and developed by Tramex, this state of the art technology can notify users allowing for quick response to in-situ and environmental changes.

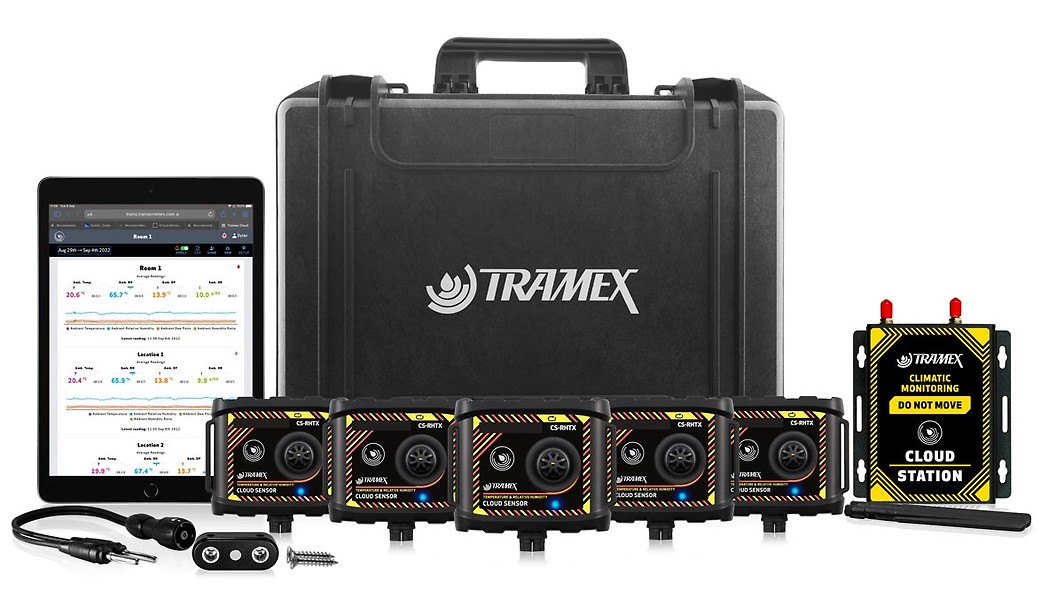

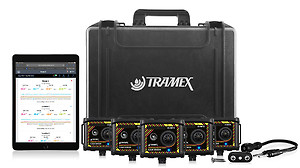

The TREMS-WME/MC kit comprises a Tramex Cloud Station router, 5 CS-RHTX Tramex Cloud Sensors for ambient conditions, and 5 external WME/MC probes.
Multiple Sensors can be used with one Station and additional Sensor and WME/MC probe Accessory Packs are also available, meeting your specific monitoring requirements.
Registration and on-site set-up is simple using a QR code check-in procedure. The on-site Sensors, with long-life batteries, transmit relative humidity, temperature (ºC and ºF), dew point, grains per pound / grams per kilo and WME/MC readings wirelessly via the Tramex Cloud Station enabling remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform.
Tramex Cloud is a secure platform to store and report your moisture, temperature and relative humidity measurements, get notified of adverse conditions and quickly monitor status from any browser.
There are no subscription fees and there is free data with the Tramex Remote Environmental Monitoring System WME/MC.
Cloud Xtra Sensor
Temperature Sensor Specifications:
|Exceptional Accuracy:||±0.1ºF Range 68ºF to 140ºF± (0.1 °C Range 20°C to 60°C)|
|Range:||-40ºF to 257ºF (-40ºC to 125ºC)|
|Sensor Protection:||PTFE Film protects sensor opening from water & dust|
|Drift:||<0.04ºF (0.03ºC) per year|
Relative Humidity Sensor Specifications:
|Exceptional Accuracy:||±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC))|
|Range:||0 to 100%RH|
|Resolution||0.1% over the complete range|
|Drift||<0.25%RH per year|
|Transmission Range:||Up to 2 miles line-of-sight|
|Communication Frequency:||Multiple readings per hour.|
|Identification:||Items individually coded for ease of install and logging identification.|
|Size:||3.94” x 3.54” x 1.38” (100mm x 90mm x35mm)|
|Power:||Built in long-life CR123A battery|
WME/MC Probe Specifications:
|Wood Moisture Equivalent (WME/MC):||0 - 100|
Tramex Cloud Specifications
|Frequency:||Region Specific frequency available|
|Security:||WPA2-PSK encryption, no unwarranted telemetry/tracking.|
|Size:||5.9” x 3.6” x 2” (150mm x 90mm x 50mm)|
|Power:||Universal AC Power Adapter|
|Construction:||Wall-mountable ABS enclosure|
Data is stored free of charge for a period of 2 years, after which, following our data retention policy, you will need to download it.
|Size:||17.1” x 14.2” x 5.5” (43.5cm x 36cm x 14cm)|
|Power:||5 x CR123A 3-volt batteries (included)|
The CTP Contact Temperature Probe is a plug-in accessory probe used with the TREMS-WME/MC system to measure and log surface temperature over time. Used alongside the Humidity sensor functions in the Cloud Sensors, dew point circumstances can be easily identified.
The Relative Humidity Probe is a plug-in accessory that can be used with the TREMS-WEM/MC system to provide ambient or in-situ Relative Humidity, Temperature, Dewpoint temperature and grains per pound humidity ratio readings.
The Tramex Remote Environmental Monitoring System WME/MC Accessory Pack adds more Cloud Sensors to your TREMS project.
