TRAMEX REMOTE ENVIRONMENTAL MONITORING SYSTEM Xtra - TREMS-Xtra

Monitor Ambient and In-situ Temperature and Relative Humidity remotely

WITH SECURE MONITORING SOFTWARE

The Tramex Remote Environmental Monitoring System Xtra has been designed and developed by Tramex for professionals who depend on the most accurate, reliable, real-time building environment temperature and relative humidity readings using state of the art technology to respond quickly to environmental changes and notify users.

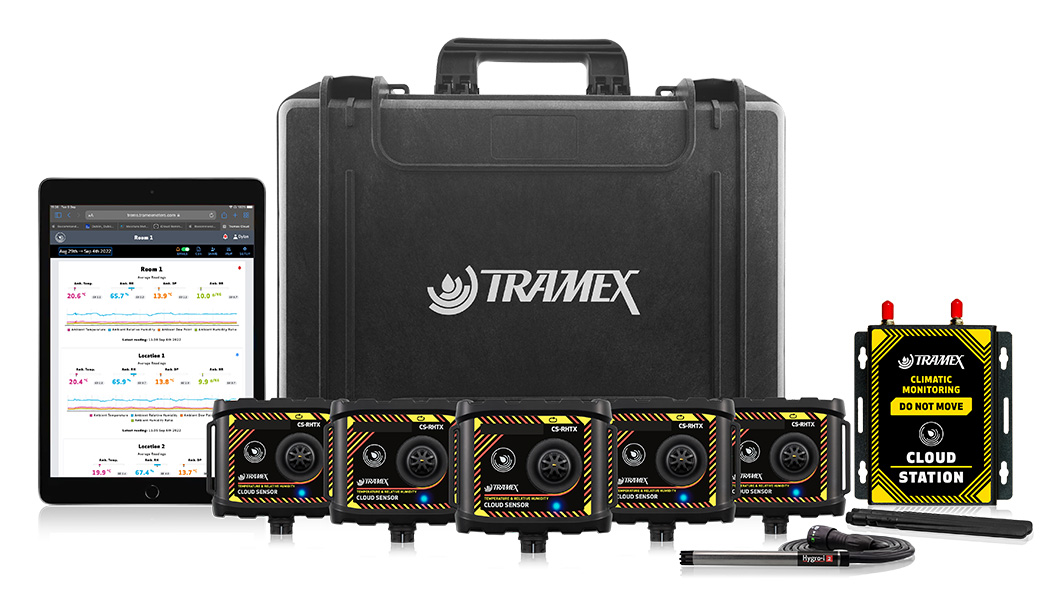

The TREMS-Xtra comprises a Tramex Cloud Station router, 5 CS-RHTX Tramex Cloud Sensors for ambient conditions, as well as 5 external Relative Humidity probes. These external probes extend the benefits of the remote monitoring system allowing for in-situ readings within building structures cavities in walls and ceilings and in situ RH readings in concrete.

Multiple Sensors can be used with one Station and additional sensor Accessory Packs are also available. Registration and on-site set-up is simple using a QR code check-in procedure. The on-site Sensors, with long-life batteries, transmit relative humidity, temperature (ºC and ºF), dew point and grains per pound / grams per kilo readings wirelessly via the Tramex Cloud Station enabling remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform.

Tramex Cloud is a secure platform to store and report your moisture, temperature and relative humidity measurements, get notified of adverse conditions and quickly monitor status from any browser.

There are no subscription fees and there is free data with the Tramex Remote Environmental Monitoring System.

Product Order Code: TREMS-Xtra
Ambient Relative Humidity and Temperature
In-Situ Ambient Relative Humidity and Temperature
Remote Environmental Monitoring System Cloud













































































  1.  5 x CS-RHTX Tramex Cloud Sensors
  2. 5 x External Relative Humidity probes for in-situ
  3. 1 x Tramex Cloud Station
  4. 1 x Heavy Duty Protective Carry Case
  5. Tramex Cloud Software Monitoring platform (Tablet not included)
  6. Antennae for Cloud Station

Cloud Xtra Sensor

Temperature Sensor Specifications:

Exceptional Accuracy: ±0.1ºF Range 68ºF to 140ºF± (0.1 °C Range 20°C to 60°C)
Range: -40ºF to 257ºF  (-40ºC to 125ºC)
Sensor Protection: PTFE Film protects sensor opening from water & dust
Drift: <0.04ºF (0.03ºC) per year



Relative Humidity Sensor Specifications:

Exceptional Accuracy: ±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC))
Range: 0 to 100%RH
Resolution 0.1% over the complete range
Drift <0.25%RH per year



Sensor Specifications:

Transmission Range: Up to 2 miles line-of-sight
Communication Frequency: Multiple readings per hour.
Identification: Items individually coded for ease of install and logging identification.
Size: 3.94” x 3.54” x 1.38” (100mm x 90mm x35mm)
Weight: 3.53oz (100g)
Construction: ABS enclosure
Power: Built in long-life CR123A battery
Included: Wall Mounting



Relative Humidity Sensor

Temperature Sensor Specifications:

Exceptional Accuracy: ±0.1ºF Range 68ºF to 140ºF± (0.1 °C Range 20°C to 60°C)
Range: -40ºF to 257ºF  (-40ºC to 125ºC)
Sensor Protection: PTFE Film protects sensor opening from water & dust
Drift: <0.04ºF (0.03ºC) per year



Relative Humidity Sensor Specifications:

Exceptional Accuracy: ±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC))
Range: 0 to 100%RH
Resolution 0.1% over the complete range
Drift <0.25%RH per year



Tramex Cloud Specifications

Frequency: Region Specific frequency available
Security: WPA2-PSK encryption, no unwarranted telemetry/tracking.
Size: 5.9” x 3.6” x 2” (150mm x 90mm x 50mm)
Weight: 9.9oz (280g)
Power: Universal AC Power Adapter
Construction: Wall-mountable ABS enclosure



Data is stored free of charge for a period of 2 years, after which, following our data retention policy, you will need to download it.



Kit Specifications

Size: 17.1” x 14.2” x 5.5” (43.5cm x 36cm x 14cm)
Weight: 7.6lbs (3.56kg)
Power: 5 x CR123A 3-volt batteries (included)
